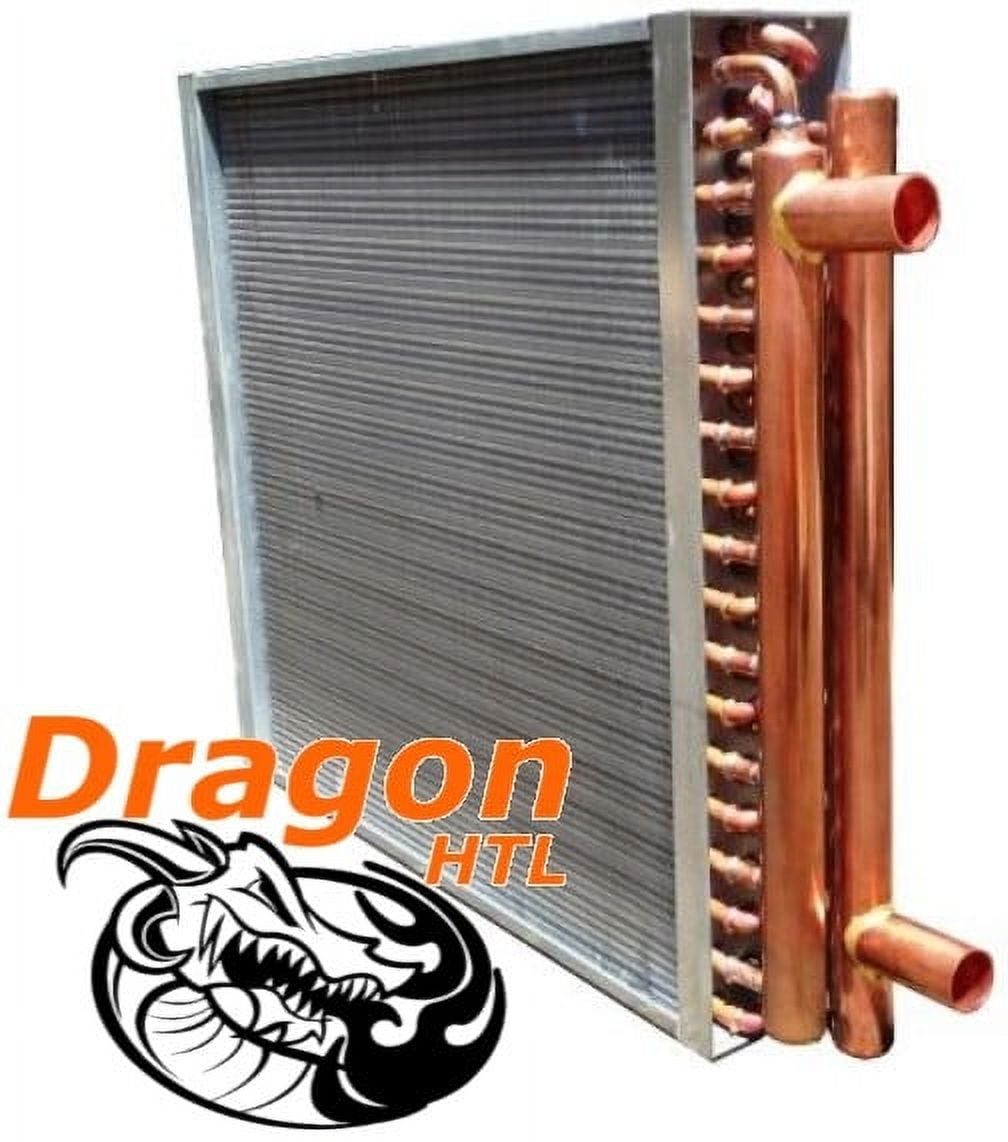

18 x 18 Water to Air Heat Exchanger. 120.000 BTU (Dragon Quality)

Our NEW Dragon HTL Water to Air Heat Exchangers are of the Highest Quality products on the market and great fit for a variety of heating and cooling applications. These compact units are designed to maximize heat transfer by utilizing a series of 3/8 copper tubes with a high density of aluminum fins. These fins are spaced such that the fin density is 12 fins per inch. This design enables heating loads of 50000-60000 Btu per square foot. Despite such high fin density there is minimal flow resistance through these water to air heat exchanger coils.

• Residential Heating
• Apartment Buildings and Condominiums
• Hybrid Systems
• Air Conditioning
• Dehumidification

Features and Specs

• Tube Coil is manufactured entirely of 3/8 seamless copper
• Plate Fin is made from Aluminum
• The core housing is made from galvanized steel
• The header is made from Copper and has a 1 ID
• The Tubeside is rated at 175 psig/350F
• BTU: 120000
• 99.9% Pure L Grade Copper

• Plate Fin Spacing is 12 per inch
• All connections are 1 inch ID Solder
• Ports long enough to work with SharkBite Fittings
• Units kept in stock for immediate delivery

• Designed to maximize heat transfer by utilizing a series of 3/8 copper tubes with a high density of aluminum fins.
• This design enables heating loads of 50000-60000 Btu per square foot.
• Applications: Residential Heating; Apartment Buildings and Condominiums; Hybrid Systems; Air Conditioning; Dehumidification
• 99.9% Pure L Grade Copper
• Dragon Quality Products
